Gold mining equipment & ore processing plants
Complete 1 to 50 tonne-per-hour processing plants and individual machines for gold and mineral producers across Africa, from crusher to concentrate.
Recovery starts with the right process.
Two plants with the same capacity can recover very different amounts of gold. The difference is usually the process: the wrong separation method for an ore leaves value in the tailings.
Ore processing turns mined rock into a concentrate ready for refining. The ore is crushed, ground to a fine powder, sorted by particle size and then separated, so the valuable mineral is kept and waste rock is removed. The separation method depends on how the mineral occurs in your ore.
We help you choose that method, then supply the full plant or the individual machines you are missing, sized from 1 to 50 tonnes per hour. Where needed, ore samples can be tested by the equipment manufacturer's laboratory before you commit.
Three separation processes
Select a process to see the plant layout and the machines in it.

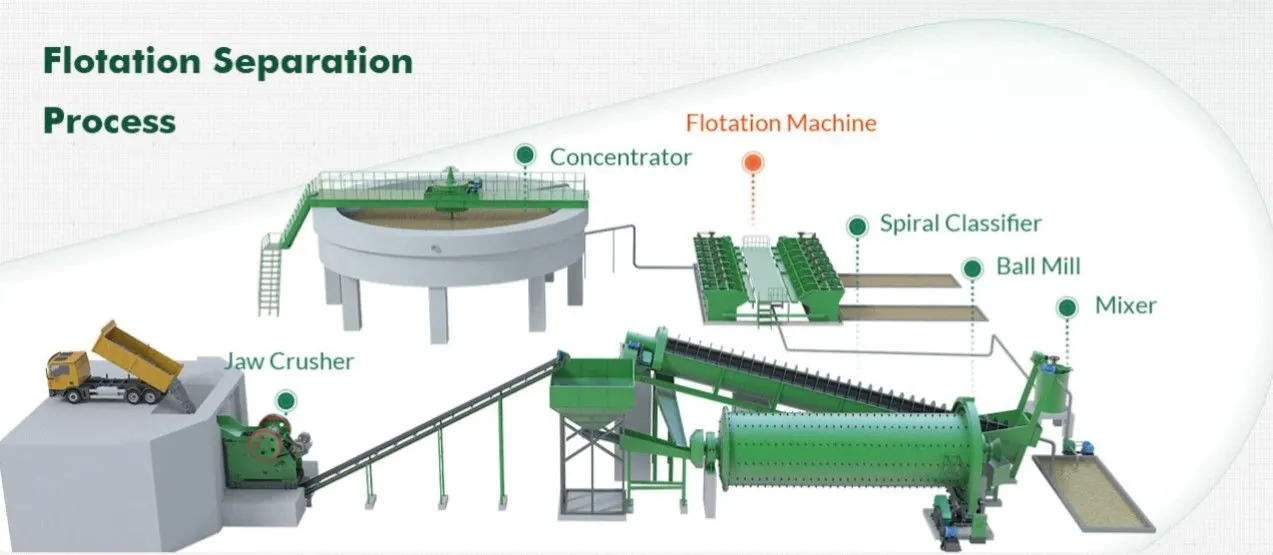

Flotation separation
Finely ground ore is mixed with water and reagents. Air bubbles carry the valuable mineral particles to the surface as a froth, which is skimmed off and thickened into concentrate. Flotation is the main method for fine-grained and sulphide ores.
Suited to
Sulphide gold ores, copper, lead, zinc and silver ores, and fine-grained complex ores.
Equipment sequence
- Jaw crusher
- Ball mill
- Spiral classifier
- Mixer
- Flotation machine
- Concentrator

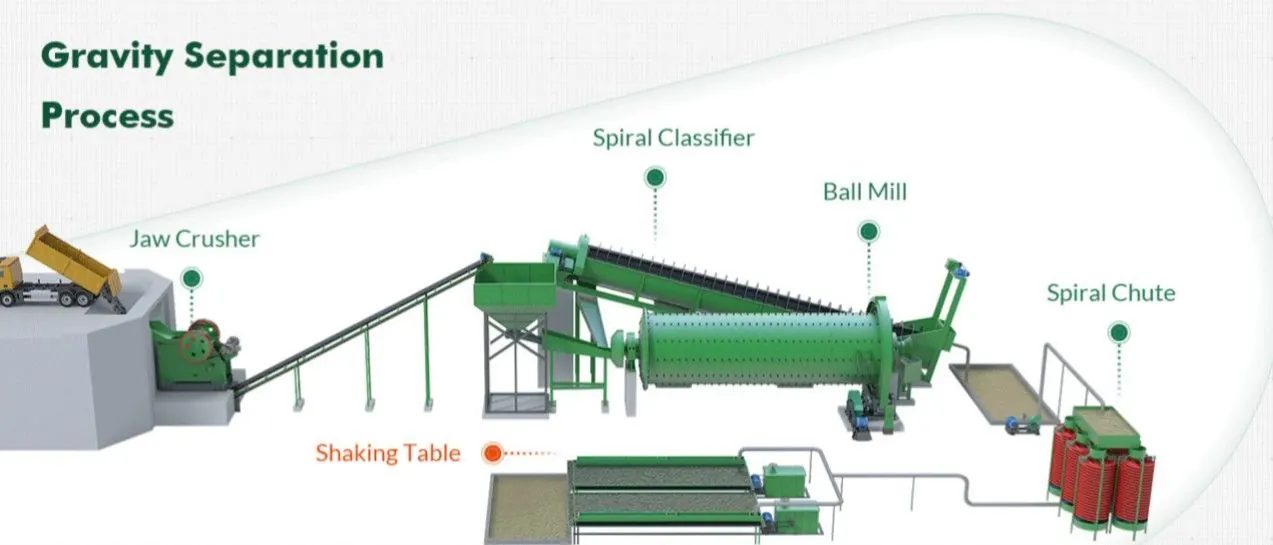

Gravity separation
Gold is much heavier than the rock around it. Gravity equipment uses that density difference, with water and motion, to separate free gold without chemicals. It is simple to run and low cost, and often forms the first recovery stage.
Suited to
Free-milling and alluvial gold, oxide ores and coarse particles.
Equipment sequence
- Jaw crusher
- Ball mill
- Spiral classifier
- Spiral chute
- Shaking table

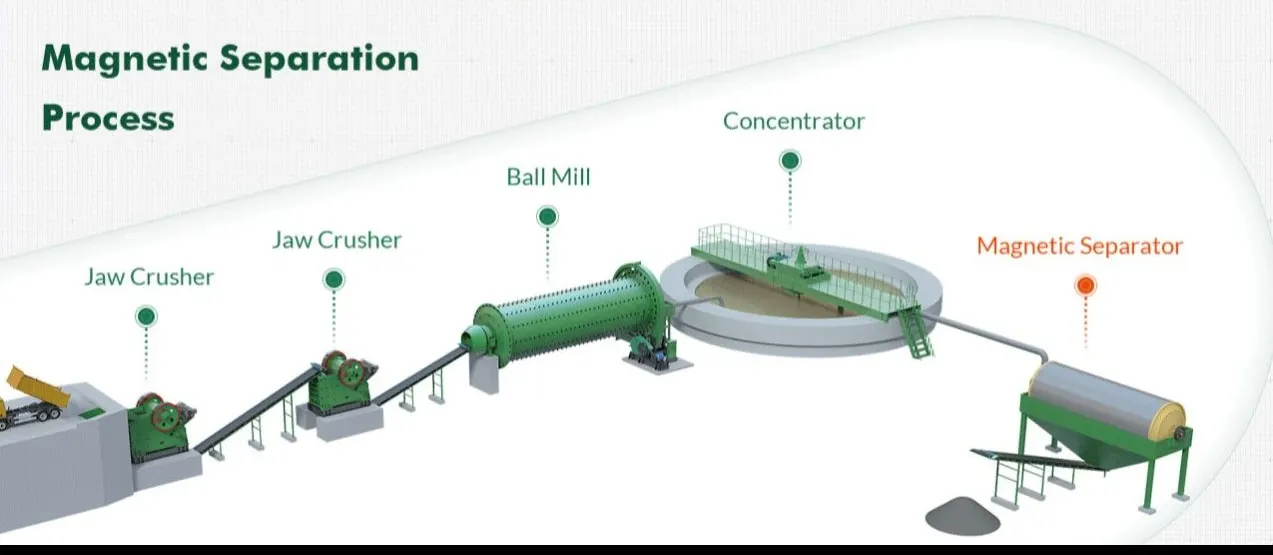

Magnetic separation
Magnetic separators pull magnetic minerals out of the ground ore. After two-stage crushing and grinding, the concentrate passes over magnetic drums for rough and fine separation. It is also used to remove iron from non-metallic minerals.
Suited to
Magnetite and other iron ores, and iron removal from quartz, silica and similar minerals.
Equipment sequence
- Jaw crusher
- Second jaw crusher
- Ball mill
- Concentrator
- Magnetic separator
Equipment we supply
Individual machines, replacement units or a complete plant package.

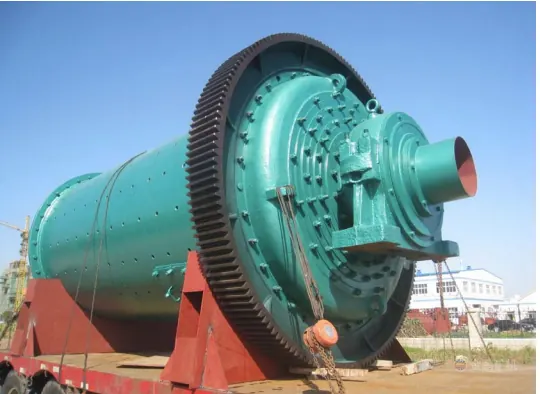

Ball mills
Grind crushed ore to a fine powder ready for separation.
Centrifugal gold concentrators
High-recovery gravity concentration of fine free gold.

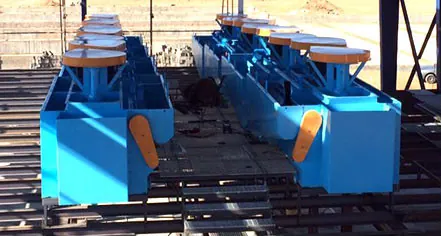

Flotation machines
Banks of flotation cells for sulphide and fine ores.

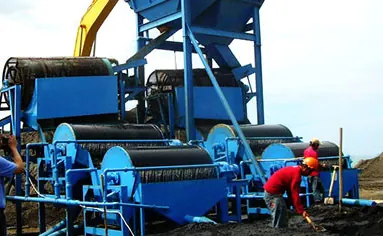

Magnetic separators
Drum separators for iron ore and iron removal.

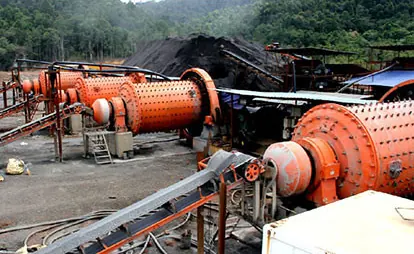

Grinding lines
Mills, conveyors and classifiers supplied as one line.
Power generation
Diesel generators sized for remote plant sites.
Crushing & grinding
- Jaw crushers, primary and secondary
- Ball mills
- Spiral classifiers
- Feeders and hoppers
Separation
- Flotation machines
- Shaking tables and spiral chutes
- Centrifugal gold concentrators
- Magnetic separators
Plant support
- Thickeners and agitation tanks
- Belt conveyors and pumps
- Diesel generators
- Wear parts and spare liners
From site preparation to commissioning.

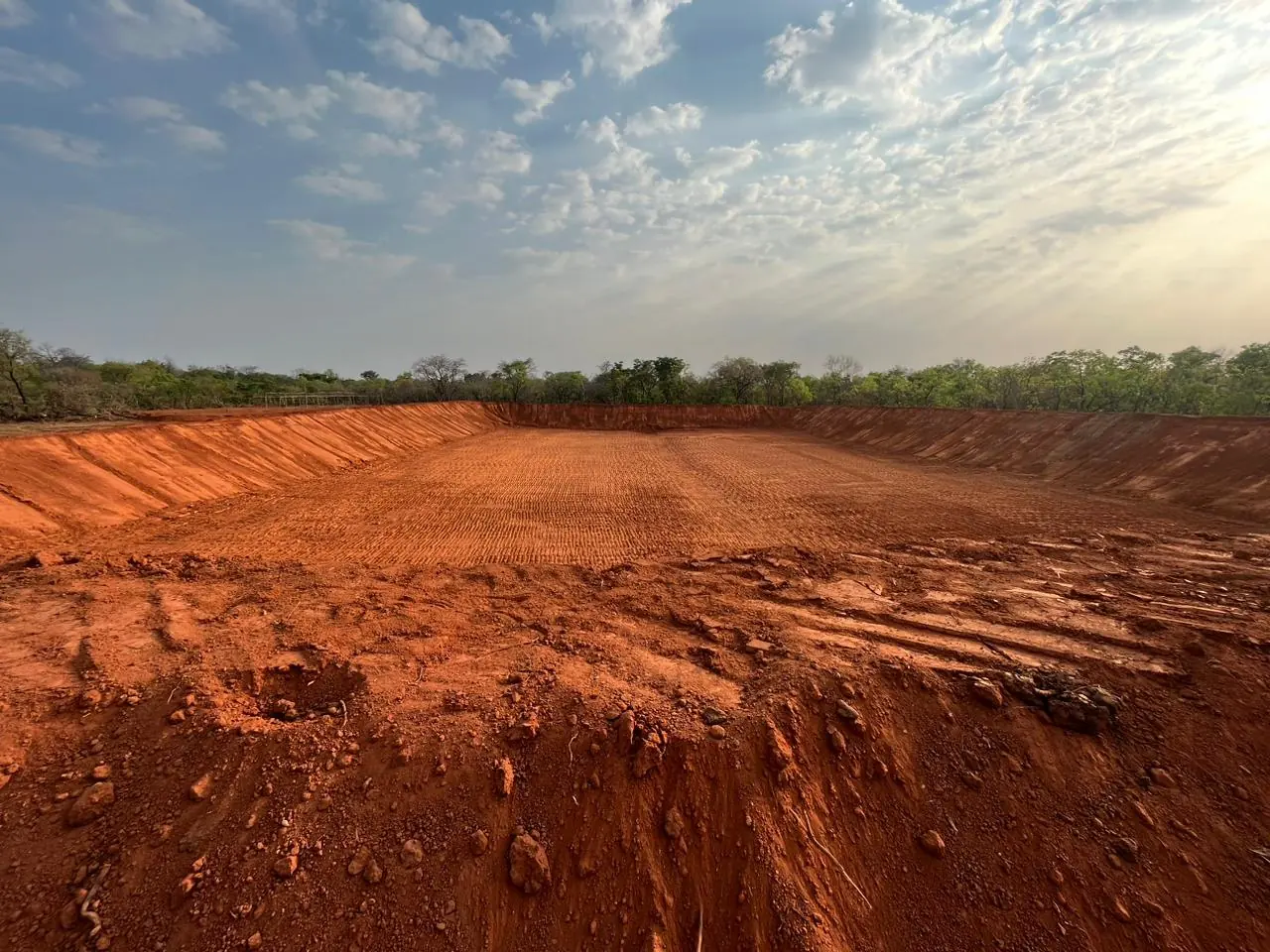

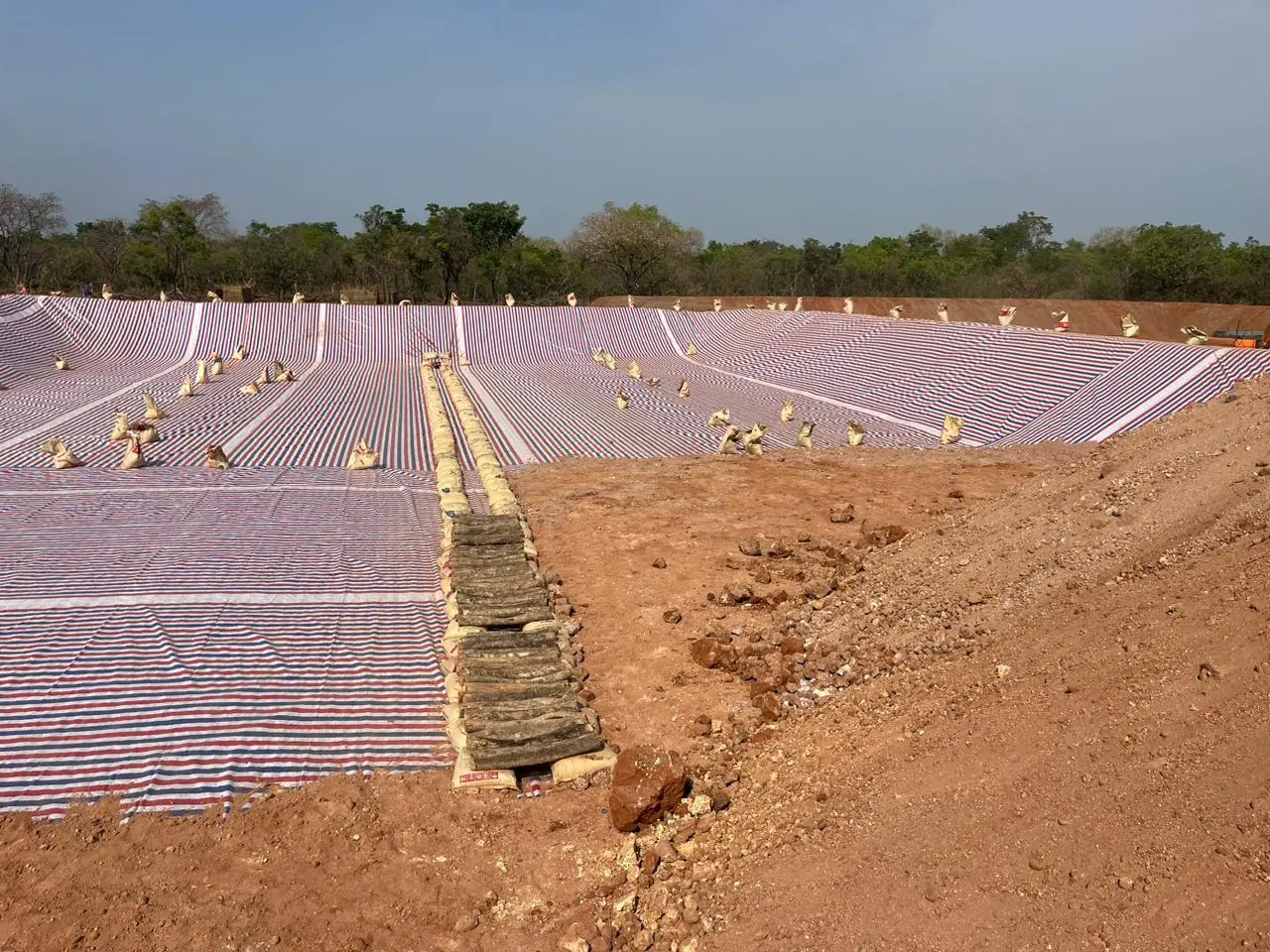

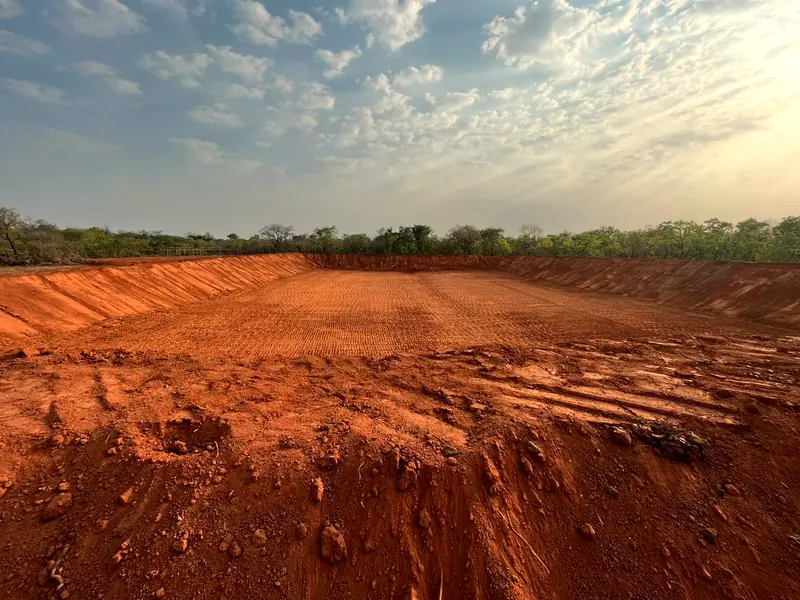

A plant needs prepared ground, water, ponds and power. We time equipment delivery to your site works, then coordinate installation, commissioning and operator training with the manufacturer's engineers.
Site works
Mining equipment questions
How do I choose between flotation, gravity and magnetic separation?
It depends on your ore. Gravity suits free and alluvial gold with coarse particles; flotation suits sulphide and fine-grained ores; magnetic separation suits iron ores. Many gold plants combine gravity and flotation. The best way to decide is to test an ore sample, which we can arrange through the manufacturer's laboratory. Compare the three processes.
What plant capacity can you supply?
Complete ore processing plants from 1 to 50 tonnes per hour, as well as single machines to extend or repair an existing plant.
Can I buy a single machine rather than a whole plant?
Yes. We supply individual jaw crushers, ball mills, classifiers, flotation machines, shaking tables, concentrators, magnetic separators, conveyors and generators, plus wear parts and spare liners.
Related services
Planning a plant or replacing a machine?
Send your ore type, target capacity and site location. We will recommend a process and quote the equipment.
